Bistable Rotation Solenoid 40 Round series



Bistable rotation

0perating angle within 30 degree to 100 degree

High output and high response speed

  • Technical Specification

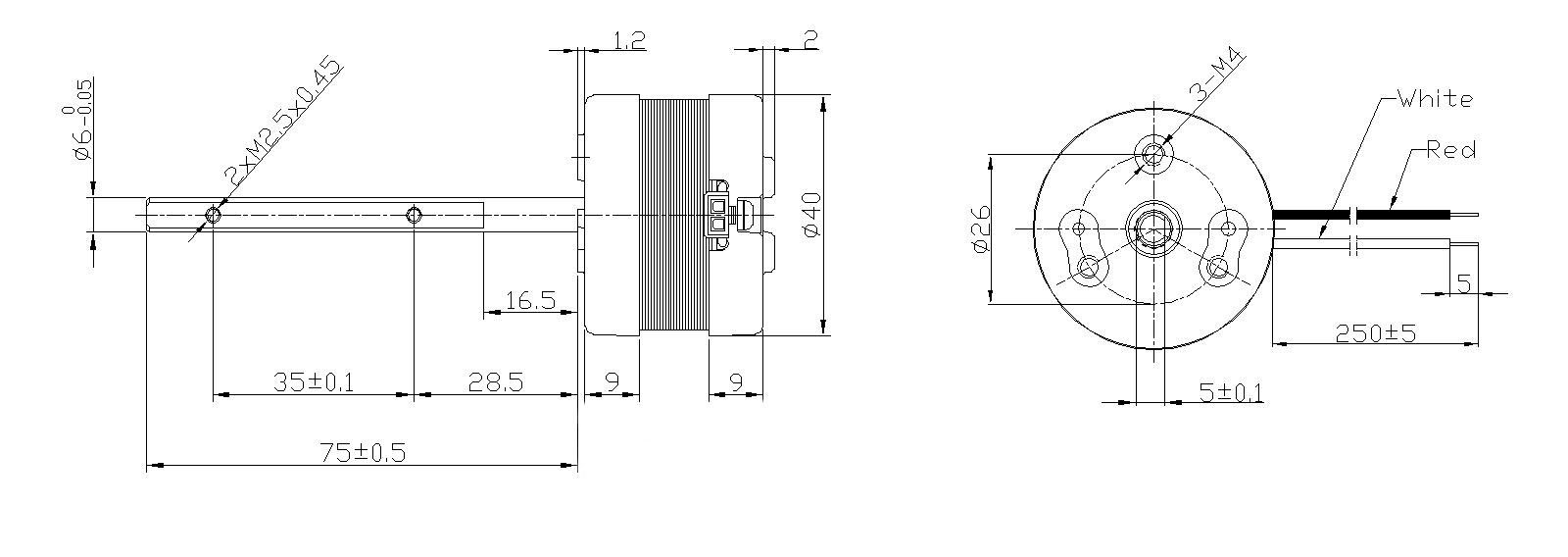

  • Dimensions

  • Download

  • Video

    SPECIFICATION

    Model Magnetizer

    Width

    (mm)

    Megent

    Diameter

    (mm)

    Megent

    Length

    (mm)

    DC register

    (ohms)

    Working

    Voltage

    (V)

    WEIGHT

    (g)

    SDDCTR40—15/18 18 15 18 6,10 8-24 175
    SDDCTR 40—15/15 15 15 15 8,12 8-24 165
    SDDCTR 40—15/13 13 15 13 10,15 8-24 155
