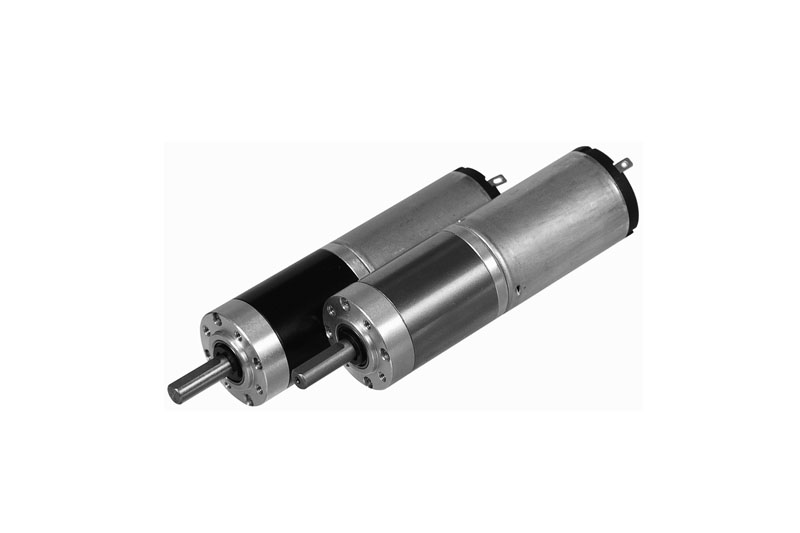

28JXE10K/28ZY47

28mm OD Planetary Gearbox, Permissible Load Range: 0.1N.m~1.0N.m

home_betheme_blog_classic_1
home_betheme_blog_classic_1
←
→

  • Technical Specification

  • Dimensions

  • Characteristic Curve

  • Download

    Motor Technical Data

    TYPE
    Rated

    voltage

    		 No-load

    speed

    		 No-load

    current

    		 Rated

    speed

    		 Rated

    torque

    		 Output

    power

    		 Rated

    current

    		 Stall

    torque

    		 Stall

    current
    VDC r/min mA r/min mN.m W mA mN.m A
    28ZY47-2445 24 5000 80 3800 7 2.8 230 25 0.7
    28ZY47-2467 24 6700 100 5100 15 8.0 460 55 1.8

    Gear motor technical date

    28ZY47-2445 DC Motor

    Reduction ratio 3.7 5.2 14 19 27 51 71 100 139
    Number of gear trains 1 1 2 2 2 3 3 3 3
    Length(L)      mm 23.5 23.5 32.0 32.0 32.0 40.3 40.3 40.3 40.3
    No-load speed  r/min 1348 965 357 263 185 98 70 50 36
    Rated speed  r/min 1024 734 271 200 141 75 54 38 27
    Rated torque  N.m 0.02 0.03 0.08 0.11 0.15 0.26 0.36 0.51 0.71
    Max. permissible load in a short time N.m 0.3 0.3 1.2 1.2 1.2 2.5 2.5 2.5 2.5

    Gear motor technical date

    28ZY47-2467 DC Motor

    Reduction ratio 3.7 5.2 14 19 27 51 71 100 139
    Number of gear trains 1 1 2 2 2 3 3 3 3
    Length(L)      mm 23.5 23.5 32.0 32.0 32.0 40.3 40.3 40.3 40.3
    No-load speed  r/min 1806 1293 479 353 248 131 94 67 48
    Rated speed  r/min 1375 985 364 268 189 100 72 51 37
    Rated torque  N.m 0.05 0.07 0.17 0.23 0.33 0.56 0.78 1.1 1.5
    Max. permissible load in a short time N.m 0.3 0.3 1.2 1.2 1.2 2.5 2.5 2.5 2.5
