16 Serious BLDC Motor

Brushless DC motor,with compact size and high speed for electric curtain


  • Technical Specification

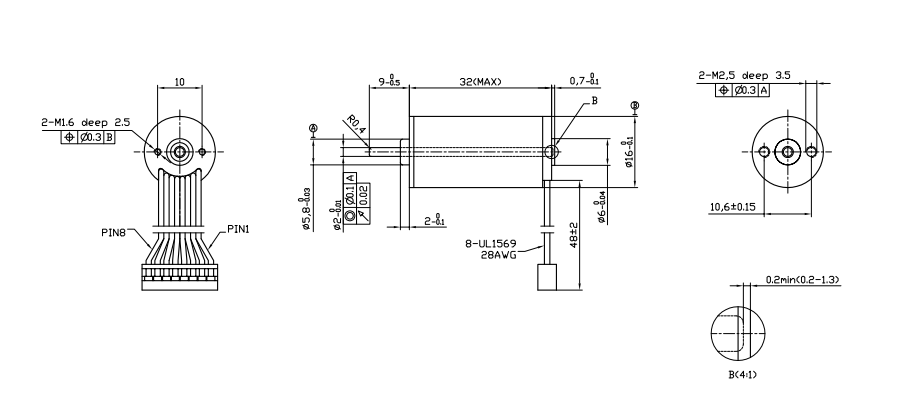

  • Dimensions

  • Download


    Winding type: Star
    Hall effect angle: 120 degree electrical angle
    Shaft run out: 0.025mm
    Insulation Class: Class B
    Dielectric strength:500VDC for one minute
    Ambient temperature: -20—+40℃



    Lead No. Lead Color Lead Gauge Function
    1 ORG 28AWG UL1569 Phase U
    2 BRN Phase V
    3 GRE Phase W
    4 RED 28AWG UL1569 +5V
    5 YEL Hall A
    5 WHI Hall B
    7 BLU Hall C
    8 BLA GND


    Model 16DMW32-24120
    Voltage V 24
    Number of poles   2
    Rated power W 8.7
    No load speed rpm 16000
    Rated torque m.Nm 6.9
    Rated Speed rpm 12000
    Rated Current A 1
    Peak Torque m.Nm 15
    Weight Kg 0.03
    Length mm 32
