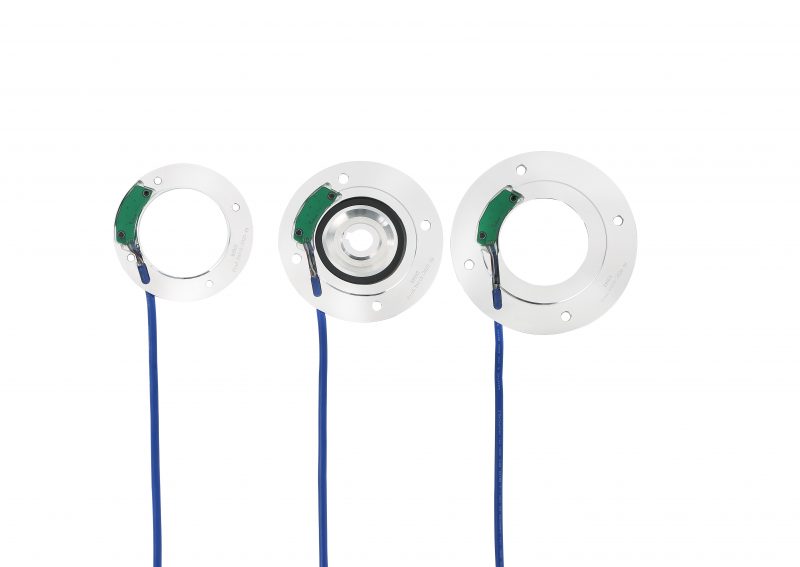

◆Diameter 90,105,120mm for all IEC -flange motor available,other diameters available on request

◆Space saving assembled between motor and machine or gear flange

◆ Flange thickness 7-12mm

◆HTL (10-24VDC) version,TTL(5VDC) optional

◆1~5120 pulses per rotation,channel A and B

◆No electrical components exposed,grade IP67

◆Aluminum /stainless steel flange

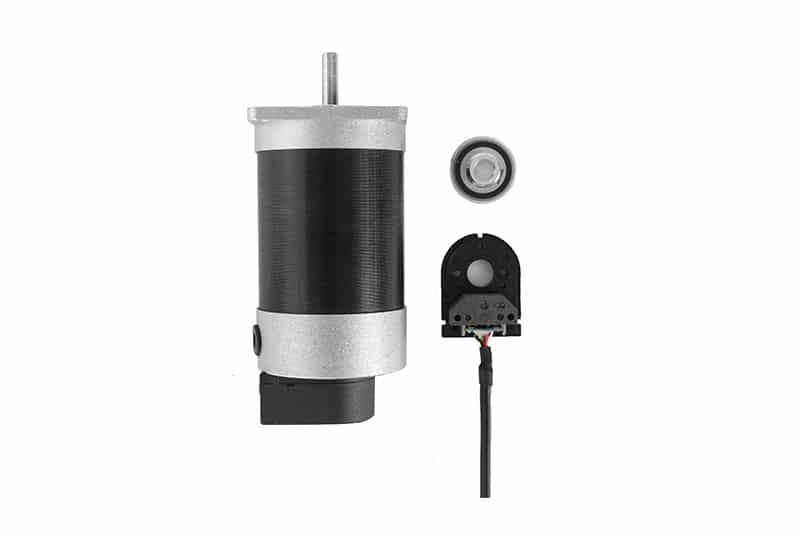

• Product Structure: hollow shaft
• Outside diameter (mm): 30
• Aperture / ShaftDiameter(mm):3,4,5,6,8,10
• Resolution (CPR): 100,200,256,360,400,500,512,1000,1024
• Operating voltage: 5V
• Output circuit: voltage output, open collector, line driver
• Small size,TTLcompatible
