42JXE100K/42ZY85
42mm Planetary Gearbox Permissible Load Range: 1N.m~10N.m
Ring Gear Material: Metal and Powder Metal
Application: electrica curtain
Technical Specification

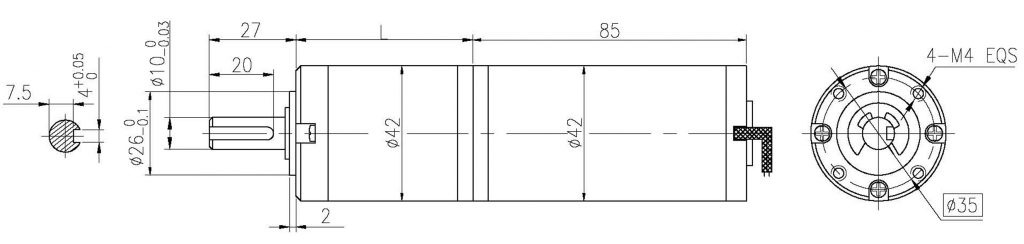

Dimensions
Download
Motor Technical Data
Type |
Rated
voltage |
No-load
speed |
No-load
current |
Rated
speed |
Rated
torque |
Output
power |
Rated
current |
Stall
torque |
Stall
current |
VDC | r/min | A | r/min | mN.m | W | A | mN.m | A | |
42ZY85-2440 | 24 | 4000 | 0.45 | 3000 | 93 | 29 | 2.0 | 310 | 6.2 |
Gear Motor Technical Data
42ZY85-2440DC Motor
Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Length(L) mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 | 62.9 | 62.9 |
No-load speed r/min | 1078 | 772 | 286 | 211 | 148 | 78 | 56 | 40 | 29 | 22 | 18 | 16 |
Rated speed r/min | 829 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 17 | 14 | 12 |
Rated torque N.m | 0.31 | 0.43 | 1.1 | 1.4 | 2.0 | 3.5 | 4.8 | 6.8 | 9.4 | 10 | 10 | 10 |
Max. permissible load in a short time N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 | 30 |
