ZGC provides a global range of DC motor & driver products

86DMW+5GUL

Max efficiency of gear box:89%

Motor power:100-300W

Application:AGV

home_betheme_blog_classic_1
home_betheme_blog_classic_1
←
→

  • Technical Specification

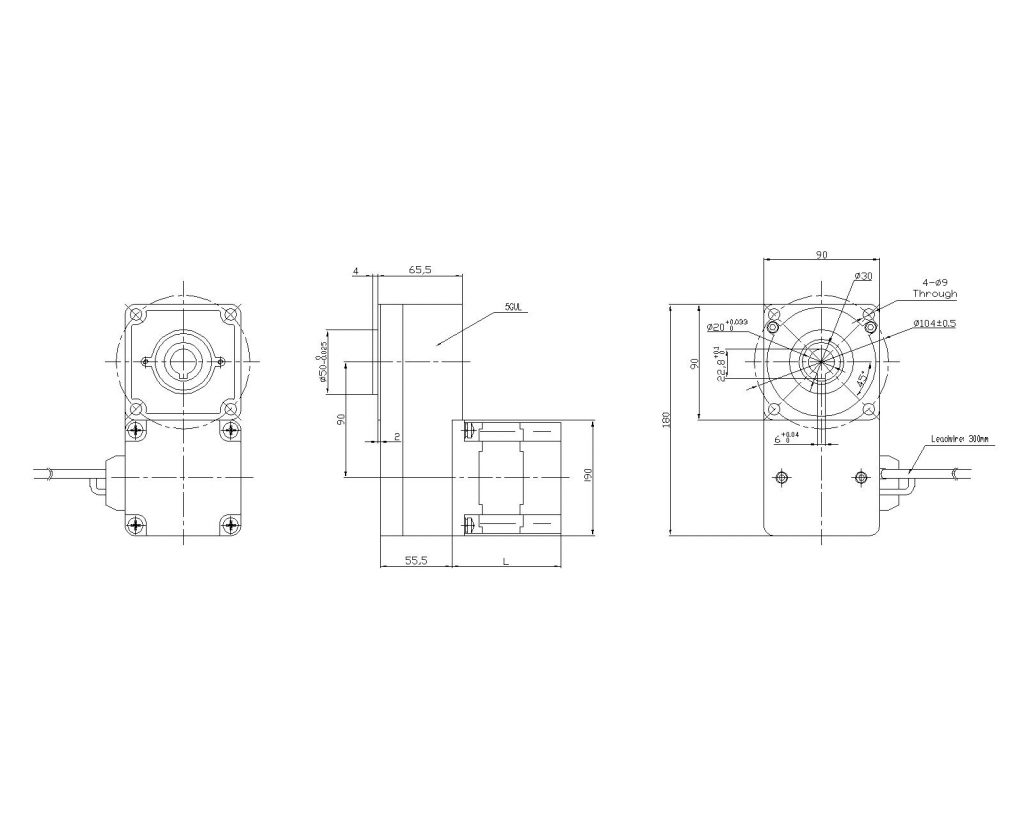

  • Dimensions

  • Download

    BRUSHLESS MOTORSPECIFICATION

    TYPE Rated

    voltage

    		 No-load

    speed

    		 Rated

    speed

    		 Rated

    torque

    		 Rated

    power

    		 Rated current Length
    VDC rpm rpm N.m W A mm
    86DMW60-2430 24 3800 3000 0.33 100 6 55
    86DMW70-2430 24 3800 3000 0.67 200 12 65
    86MDW80-2430 24 3800 3000 1 300 18 75



    L TYPE GEAR BOXSPECIFICATION



    86DMW60-2430

    Reduction ratio 5 10 15 20 30 50 100 200
    Efficiency 74% 89%
    Rated speed rpm 600 300 200 150 100 60 30 15
    Rated Toqrue Nm 1.2 2.4 3.5 4.8 7 12 24 40



    86DMW70-2430

    Reduction ratio 5 10 15 20 30 50 100 200
    Efficiency 74% 89%
    Rated speed rpm 600 300 200 150 100 60 30 15
    Rated Toqrue Nm 2.4 4.8 7 9.6 14 24 45 65



    86DMW80-2430

    Reduction ratio 5 10 15 20 30 50 100 200
    Efficiency 74% 89%
    Rated speed rpm 600 300 200 150 100 60 30 15
    Rated Toqrue Nm 3.5 8 12 16 24 38 50 70

    All gear box output turn direction in above form are opposite as motor direction
