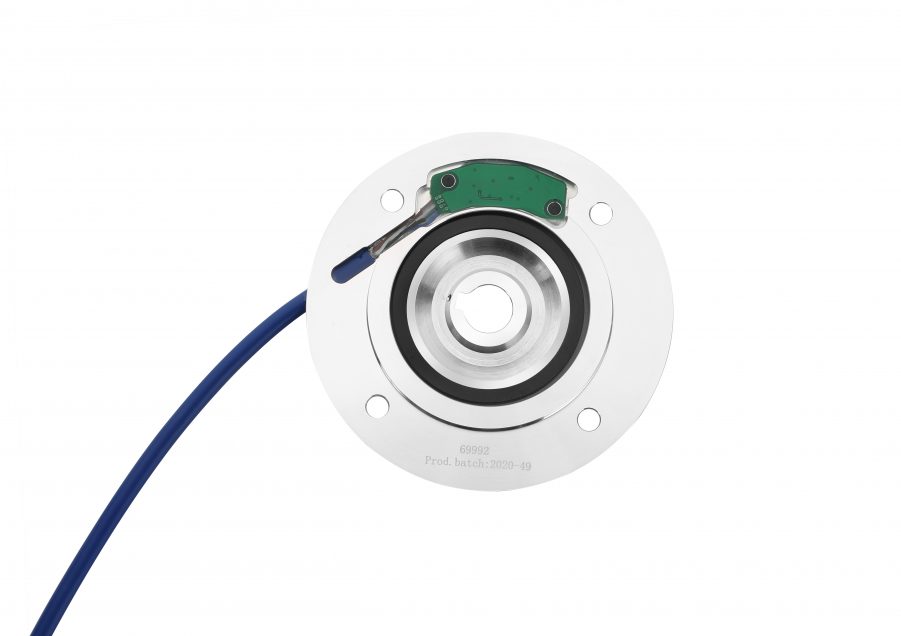

IEC Flange magnetic encoder



◆Diameter 90,105,120mm for all IEC -flange motor available,other diameters available on request

◆Space saving assembled between motor and machine or gear flange

◆ Flange thickness 7-12mm

◆HTL (10-24VDC) version,TTL(5VDC) optional

◆1~5120 pulses per rotation,channel A and B

◆No electrical components exposed,grade IP67

◆Aluminum /stainless steel flange

  • Technical Specification

  • Dimensions

  • Download

    Electrical parameter

    Input voltage 10-30VDC
    Output signal HTL 10-30V
    Pulse per rotation 1~5120 available
    Output frequency ≤100kHz
    Signal level Vhigh≥0.7V,ILast≤10mA

    Vlow≤0.7V,ILast≤10mA

    Reverse polarity protection YES
    Output short circuit protection YES
    Motor shaft tolerance Axial 0.2mm,radial 0.05mm
