Servo motor 60mm 4 pairs of poles

Power:200-400w

Rated speed:3000rpm

Incremental/Absolute (optical / magnetic) encoder optional

IP65

home_betheme_blog_classic_1
home_betheme_blog_classic_1
←
→

  • Technical Specification

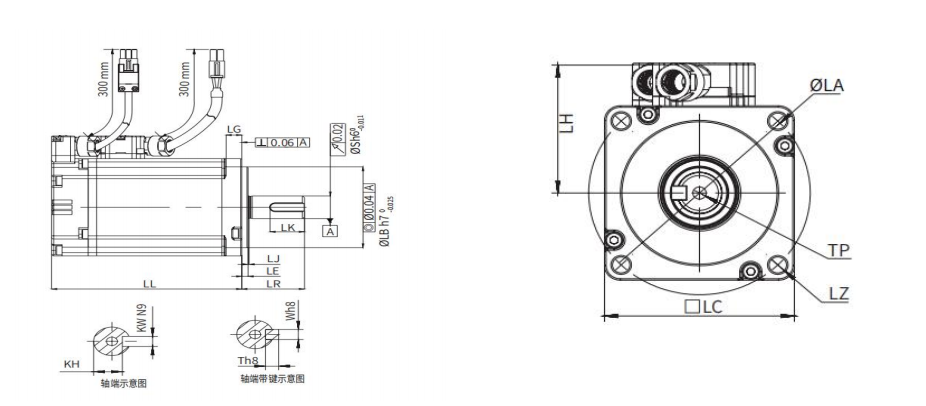

  • Dimensions

  • Download

    General Specifications



    Pairs of poles 4
    Numbers of Phases 3
    Dieletric Strength 600 VAC/S
    Insulation Resistance 100MOhm @500VDC
    Shaft Axial Play 0.08mmMax.@4N
    Shaft Radial Play 0.02mmMax.@4N
    Distance from flange 10mm
    Ambient Environment -20…+55℃,Humidity max 85%(No condensation)
    Storage Environment -10…+55℃,Humidity max 85%(No condensation)
    IP Grade  IP 65
    Encoder 2500ppr Magnetic encoder                                                                Incremental/Absolute (optical / magnetic) encoder optional,multiple resolutions are available



    Electrical Specifications

    Model 62100-4820 62100-4830 621004840 62100-2420 62100-2430 62100-2440
    Rated Voltage V DC48 DC48 DC48 DC24 DC24 DC24
    No-load Current A 0.67 0.75 1.03 1.35 1.47 2.05
    Rated Current A 5.5 7.8 10.1 11.6 16.5 22
    Rated Power W 200 300 400 200 300 400
    Rated Speed rpm 3000 3000 3000 3000 3000 3000
    No-load Speed rpm 3600 3600 3600 3600 3600 3600
    Rated Torque N.m 0.64 0.95 1.27 0.64 0.95 1.23
    Peak Torque N.m 1.5 2 2.7 1.5 1.98 2.65
    Peak Current A 15.3 20.1 22 30.6 41 45
    Back-EMF Constant vs/Krpm 11.3 8.3 5.8 4.6 3.7 2.6
    Rotor inertia *10–5kg.m2 1.62 2.32 3.16 1.62 2.32 3.16
    Resistance mΩ 110 84 66 55 42 33
    Inductance mH 0.65 0.49 0.31 0.35 0.23 0.18
    Torque Constant Nm/A 0.126 0.083 0.097 0.06 0.06 0.06
    Electrical time constant ms 0.108 0.58 0.62 0.116 0.69 0.97
    Efficiency % 77 80.2 82 75.8 78.5 81
    Axial force N 202 338 422 210 442 457
    Radial force N 114 160 198 116 204 242
    Motor Length mm 89 104 120 89 104 120
    Motor length with brake L mm 130 145 170 130 130 170
    Weight Kg 1.12 1.35 1.62 1.12 1.35 1.62
    Weight with Brake Kg 1.52 1.85 2.15 1.52 1.85 2.15
