Servo motor 80mm 3 pairs of poles-small inertia
Power:250-1000w
Rated speed:3000-4000rpm
Incremental/Absolute (optical / magnetic) encoder optional
IP65
Technical Specification

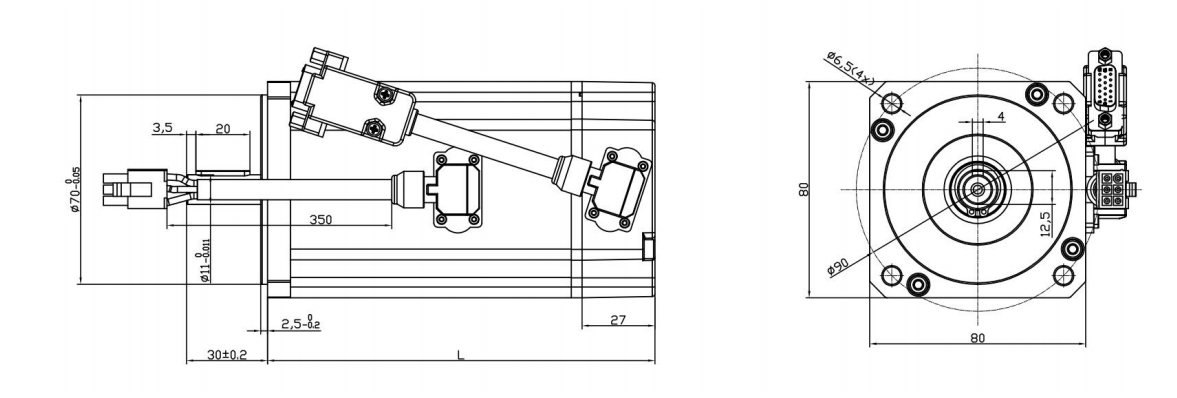

Dimensions
Download
General Specifications
Pairs of poles | 3 |
Numbers of Phases | 3 |
Dieletric Strength | 600 VAC/S |
Insulation Resistance | 100MOhm @500VDC |
Shaft Axial Play | 0.08mmMax.@4N |
Shaft Radial Play | 0.02mmMax.@4N |
Distance from flange | 10mm |
Ambient Environment | -20…+55℃,Humidity max 85%(No condensation) |
Storage Environment | -10…+55℃,Humidity max 85%(No condensation) |
IP Grade | IP 65 |
Encoder | 2500ppr Magnetic encoder Incremental/Absolute (optical / magnetic) encoder optional,multiple resolutions are available |
Electrical Specifications
Model | 81100-4825S | 81100-4840S | 81100-2453S | 81100-4853S | 81100-4875S | 81100-48100S | |
Rated Voltage | V | DC48 | DC48 | DC24 | DC48 | DC48 | DC48 |
No-load Current | A | 0.65 | 0.93 | 2.15 | 1.22 | 1.47 | 1.45 |
Rated Current | A | 6.5 | 10.5 | 27.4 | 13.5 | 18.3 | 23.8 |
Rated Power | W | 250 | 400 | 530 | 530 | 750 | 1000 |
Rated Speed | rpm | 3000 | 4000 | 4000 | 4000 | 4000 | 4000 |
No-load Speed | rpm | 4580 | 5950 | 5950 | 6100 | 5736 | 5805 |
Rated Torque | N.m | 0.7 | 0.95 | 1.27 | 1.27 | 1.79 | 2.3 |
Peak Torque | N.m | 1.33 | 1.9 | 2.62 | 2.65 | 3.8 | 5 |
Peak Current | A | 13 | 21 | 56 | 26.4 | 40 | 51 |
Back-EMF Constant | vs/Krpm | 9.37 | 7.2 | 3.57 | 7.1 | 7.6 | 7.72 |
Rotor inertia | *10–5kg.m2 | 1.45 | 1.81 | 2.17 | 2.17 | 3.6 | 5.07 |
Resistance | mΩ | 236 | 103 | 21.2 | 74.3 | 48.7 | 32 |
Inductance | mH | 0.21 | 0.57 | 0.11 | 0.45 | 0.32 | 0.23 |
Torque Constant | Nm/A | 0.121 | 0.094 | 0.047 | 0.097 | 0.097 | 0.097 |
Electrical time constant | ms | 0.87 | 0.94 | 0.93 | 1.02 | 1.1 | 1.22 |
Efficiency | % | 80 | 80.5 | 81.2 | 84.3 | 85.5 | 87.8 |
Axial force | N | 202 | 232 | 247 | 247 | 317 | 368 |
Radial force | N | 133 | 145 | 165 | 165 | 196 | 224 |
Motor Length | mm | 96 | 101 | 106 | 106 | 143 | 165 |
Motor length with brake L | mm | 133 | 138 | 143 | 143 | 190 | 220 |
Weight | Kg | 1.38 | 1.52 | 1.62 | 1.62 | 2.24 | 2.75 |
Weight with Brake | Kg | 1.87 | 2.04 | 2.15 | 2.15 | 2.75 | 3.24 |
